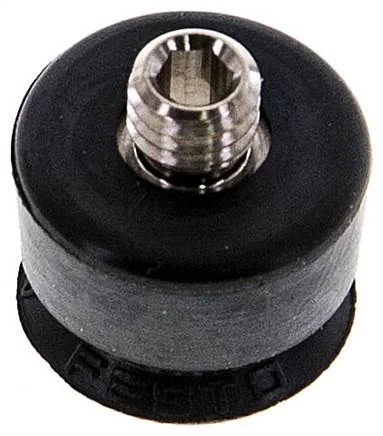

Festo - ESS-10-SNA-189288 - Vacuum Sucker

SKU: festo-ess-10-sna-189288

Browse all parts
Festo - ESS-10-SNA-189288 - Vacuum Sucker

€20.48€17.50 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€20.48

Brand
Festo
Colour
Black / white point
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Fastening Type
Via vacuum connection
Shore Hardness
50 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Special Features
Anti-static
Suction Cup Shape
Round flat
Vacuum Connection
M4
Food Compatibility
See expanded material information
Nominal Width (mm)
2
Operating Pressure
-0,095 to 0
Suction Cup Volume
0,05
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Surface Resistance (Ohm)
0,0002
Ambient Temperature (°C)
-10 to 70
Suction Cup Diameter (mm)
10
Min. Workpiece Radius (mm)
30
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 3
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
7,5
Holding Force For Nominal Operating Pressure (N)
3,90
EAN
4052568042059
Manufacturer
Festo
