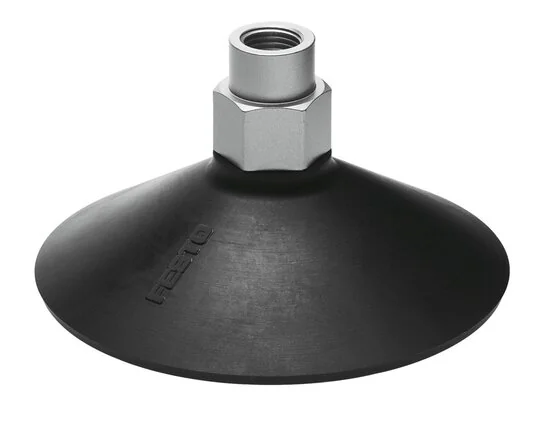

Festo - ESS-100-GT-G1/4-I-525987 - Vacuum Sucker

SKU: festo-ess-100-gt-g1-4-i-525987

Browse all parts
Festo - ESS-100-GT-G1/4-I-525987 - Vacuum Sucker

€71.86€61.42 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€71.86

Brand
Festo
Colour
Red brown
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
72 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round deep
Vacuum Connection
G1/4
Nominal Width (mm)
5,5
Operating Pressure
-0,95 to 0
Suction Cup Volume
53,9
Construction Set Up
Round bell shaped
Installation Position
arbitrary
Suction Cups Material
Vulkollan
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 80
Suction Cup Diameter (mm)
100
Min. Workpiece Radius (mm)
135
Nominal Operating Pressure
-0,7
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pull-off Force At 70% Vacuum (N)
297
High Balance Suction Cup Fixation (mm)
9,0
Shear Force For Nominal Operating Pressure (N)
183,0
Holding Force For Nominal Operating Pressure (N)
375,00
Max. Tightening Torque Fastening Thread / Fixing Thread (Nm)
11
EAN
4052568083182
Manufacturer
Festo
