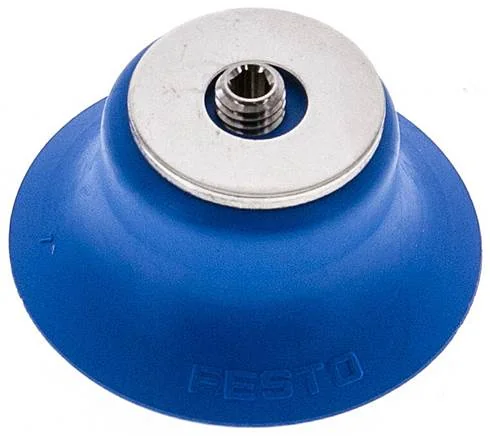

Festo - ESS-40-EU-189347 - Vacuum Sucker

SKU: festo-ess-40-eu-189347

Browse all parts
Festo - ESS-40-EU-189347 - Vacuum Sucker

€27.38€23.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€27.38

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Vacuum Connection
M6
Food Compatibility
See expanded material information
Nominal Width (mm)
3
Operating Pressure
-0,095 to 0
Suction Cup Volume
4,04
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
40
Min. Workpiece Radius (mm)
80
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 4
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
46,5
Holding Force For Nominal Operating Pressure (N)
67,60
EAN
4052568042394
Manufacturer
Festo
