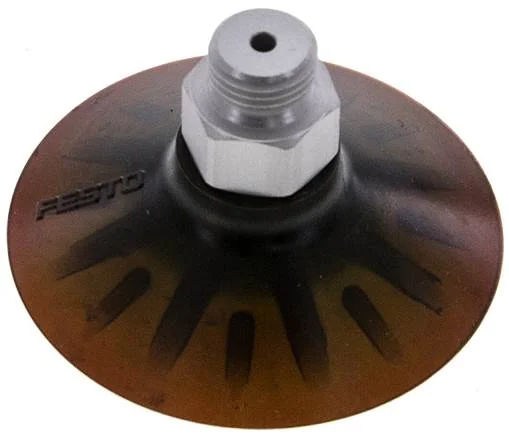

Festo - ESS-60-GT-G1/4-525982 - Vacuum Sucker

SKU: festo-ess-60-gt-g1-4-525982

Browse all parts
Festo - ESS-60-GT-G1/4-525982 - Vacuum Sucker

€47.43€40.54 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.43

Brand
Festo
Colour
Red brown
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
72 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round deep
Vacuum Connection
G1/4
Nominal Width (mm)
2,5
Operating Pressure
-0,95 to 0
Suction Cup Volume
11,3
Installation Position
arbitrary
Suction Cups Material
Vulkollan
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 80
Suction Cup Diameter (mm)
60
Min. Workpiece Radius (mm)
75
Nominal Operating Pressure
-0,7
Corrosion Resistance Class KBK
2 - moderate corrosion stress
High Balance Suction Cup Fixation (mm)
6,0
Shear Force For Nominal Operating Pressure (N)
37,0
Holding Force For Nominal Operating Pressure (N)
134,00
EAN
4052568083137
Manufacturer
Festo
