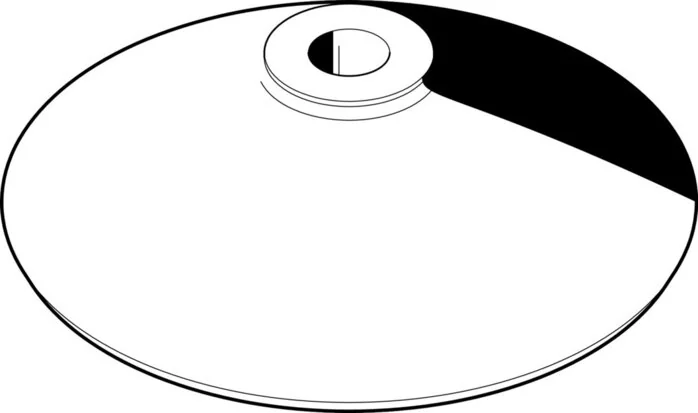

Festo - ESV-100-GT-526005 - Vacuum Suction Cup

SKU: festo-esv-100-gt-526005

Browse all parts
Festo - ESV-100-GT-526005 - Vacuum Suction Cup

€58.27€49.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€58.27

Brand
Festo
Colour
Red brown
Material Note
RoHs compliant
Fastening Type
Via vacuum connection
Shore Hardness
72 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round deep
Operating Pressure
-0,95 to 0
Suction Cup Volume
53,9
Construction Set Up
Round bell shaped
Installation Position
arbitrary
Suction Cups Material
Vulkollan
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 80
Suction Cup Diameter (mm)
100
Min. Workpiece Radius (mm)
135
Nominal Operating Pressure
-0,7
Pull-off Force At 70% Vacuum (N)
375
High Balance Suction Cup Fixation (mm)
9,0
Shear Force For Nominal Operating Pressure (N)
183
Holding Force For Nominal Operating Pressure (N)
100,0
EAN
4052568083311
Manufacturer
Festo
