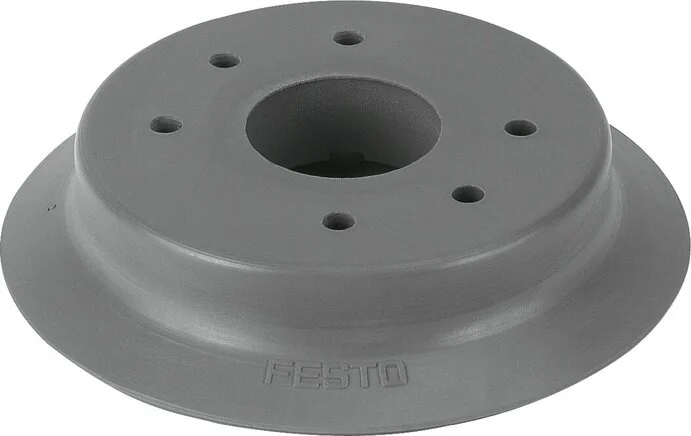

Festo - ESV-100-SF-191010 - Vacuum Suction Cup

SKU: festo-esv-100-sf-191010

Browse all parts
Festo - ESV-100-SF-191010 - Vacuum Suction Cup

€199.02€170.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€199.02

Brand
Festo
Colour
Grey
Material Note
RoHs compliant
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Food Compatibility
See expanded material information
Operating Pressure
-0,095 to 0
Suction Cup Volume
29,779
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
FPM
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-10 to 200
Suction Cup Diameter (mm)
100
Min. Workpiece Radius (mm)
460
Nominal Operating Pressure
-0,07
Holding Force For Nominal Operating Pressure (N)
503,6
EAN
4052568150372
Manufacturer
Festo
