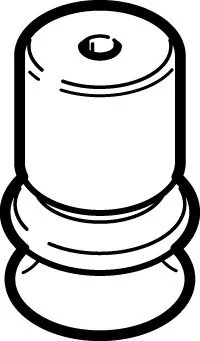

Festo - ESV-20-BU-191055 - Vacuum Suction Cup

SKU: festo-esv-20-bu-191055

Browse all parts
Festo - ESV-20-BU-191055 - Vacuum Suction Cup

€22.00€18.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€22.00

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Food Compatibility
See expanded material information
Operating Pressure
-0,095 to 0
Suction Cup Volume
1,6
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
20
Min. Workpiece Radius (mm)
40
Nominal Operating Pressure
-0,07
Height Balance Suction Cup (mm)
6,0
Holding Force For Nominal Operating Pressure (N)
12,9
EAN
4052568043490
Manufacturer
Festo
