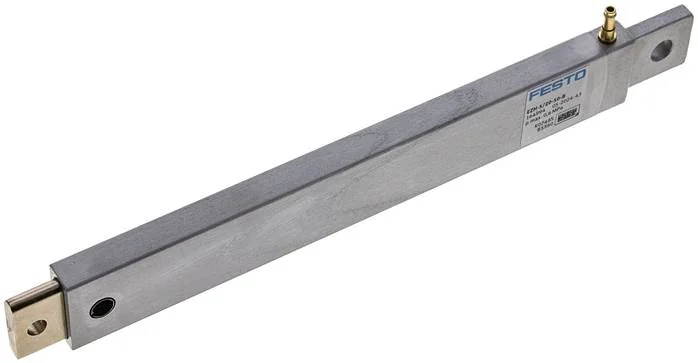

Festo - EZH-5/20-50-B-164994 - Flat Cylinder

SKU: festo-ezh-5-20-50-b-164994

Festo - EZH-5/20-50-B-164994 - Flat Cylinder

€140.51€120.09 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€140.51

Brand
Festo
Dampening
No dampening
Piston Ø
äquivalenter Durchmesser
Stroke (mm)
50
Cover Material
Aluminium
Fastening Type
With Cross-bore
Seals Material
NBR
Housing Material
Aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
without
Construction Set Up
Rectangular piston rod
Piston Rod Material
nickel-plated
Pneumatic Connection
plug / push in nipple PK-3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Anti-twist Lock / Guide
Rectangular piston rod
Operating Pressure (MPa)
0,25 to 0,6
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Max. Spring Return Force (N)
13,6
Theoretical Min. Spring Return Force (N)
10,6
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
49
EAN
4052568137397
Manufacturer
Festo
