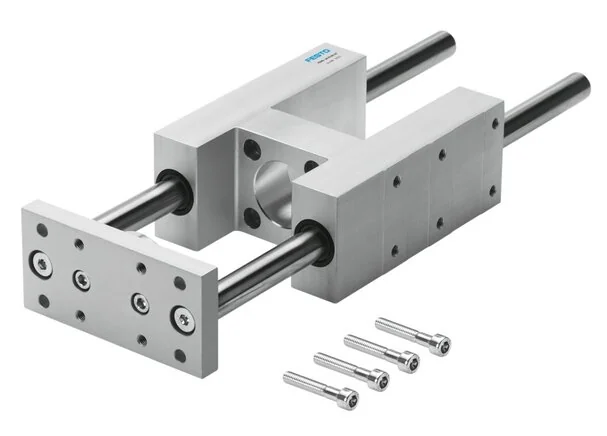

Festo - FENG-80-50-KF-34521 - Guide Unit

SKU: festo-feng-80-50-kf-34521

Browse all parts
Festo - FENG-80-50-KF-34521 - Guide Unit

€1,850.34€1,581.49 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,850.34

Brand
Festo
Size
80
Guide
ball guide
Stroke (mm)
50
Material Note
RoHs compliant
Fastening Type
with female thread
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Force Fy (N)
2300
Max. Force Fz (N)
2300
Pushing Force (N)
40
Construction Set Up
Guide
Max. Torque Mx (Nm)
170
Max. Torque My (Nm)
191
Max. Torque Mz (Nm)
191
Yoke Plate Material
Quenched and tempered steel
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
3.120
Max. Force Fz Static (N)
3.120
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
231
Max. Torque My Static (Nm)
259
Max. Torque Mz Static (Nm)
259
EAN
4052568115388
Manufacturer
Festo
