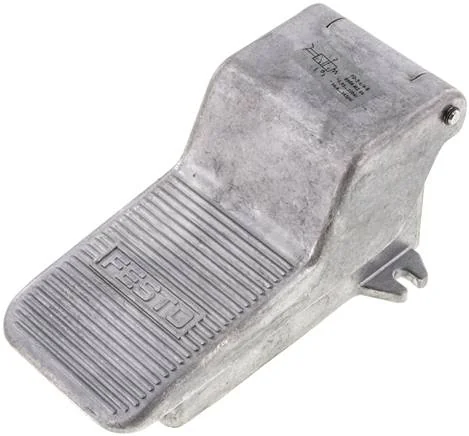

Festo - FO-3-1/4-B-8988 - Foot Valve
SKU: festo-fo-3-1-4-b-8988
€324.65€277.48 (Excl. VAT)
In stock - ready to ship
Order now for shipping within 4 to 6 business days
Shipping fee: €9.99 incl. VAT
Pay Securely with
Festo - FO-3-1/4-B-8988 - Foot Valve
€324.65
Price
€324.65
Product Details
Brand
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Manually
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 open monostable
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
7
Actuating Force (N)
55,0
Construction Set Up
Plate seat
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Operating Pressure (MPa)
-0.95 to 10
Ambient Temperature (°C)
-10 to 60
Standard Nominal Flow Rate (Standardised To DIN 1343)
600
EAN
4052568111311
Manufacturer
