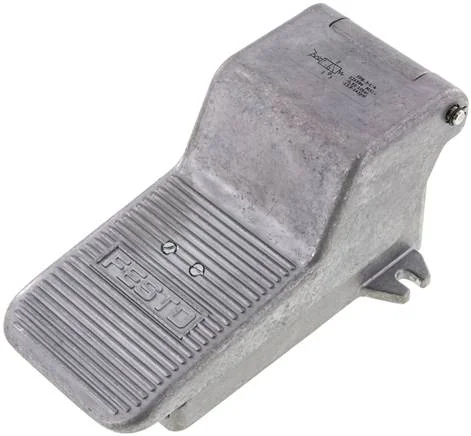

Festo - FPB-3-1/4-526984 - Foot Pedal Valve

SKU: festo-fpb-3-1-4-526984

Browse all parts
Festo - FPB-3-1/4-526984 - Foot Pedal Valve

€408.17€348.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€408.17

Brand
Festo
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Manually
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 bistable
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
7
Actuating Force (N)
31,5
Construction Set Up
Plate seat
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Operating Pressure (MPa)
-0.95 to 10
Ambient Temperature (°C)
-10 to 60
Standard Nominal Flow Rate (Standardised To DIN 1343)
550
EAN
4052568162528
Manufacturer
Festo
