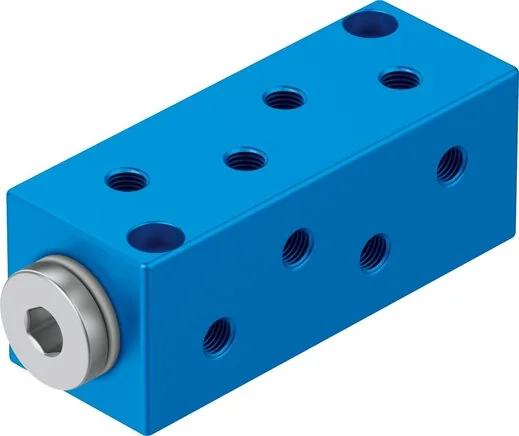

Festo - FR-12-M5-4525 - Manifold Block

SKU: festo-fr-12-m5-4525

Browse all parts
Festo - FR-12-M5-4525 - Manifold Block

€52.08€44.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€52.08

Brand
Festo
Material Note
RoHs compliant
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Number Of Outlets
12
Nominal Width (mm)
4,1
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
female thread G1/8
Pneumatic Connection 2
female thread M5
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
3,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (bar)
0 to 16
EAN
4052568064471
Manufacturer
Festo
