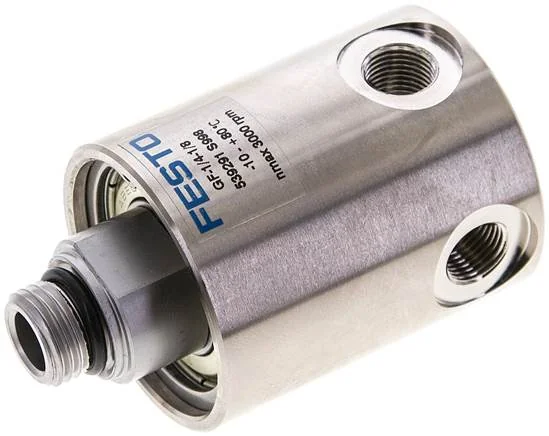

Festo - GF-1/4-1/8-539291 - Rotary Manifold

SKU: festo-gf-1-4-1-8-539291

Festo - GF-1/4-1/8-539291 - Rotary Manifold

€269.57€230.40 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€269.57

Brand
Festo
Max. Speed
3000
Material Note
RoHs compliant
Shaft Material
High-alloyed steel
Housing Material
brass, nickel-plated
Operating Medium
Wasser (flüssig, eisfrei)
Nominal Width (mm)
8
Max. Axial Force (N)
50
Installation Position
arbitrary
Max. Radial Force (N)
150
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/8
Normal Flow 1-2.1 (6->0)
1.730
Ambient Temperature (°C)
-10 to 80
Max. Tightening Torque (Nm)
2,80
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
1,65
Note On Operating And Control Medium
Oiled operation possible
Standard Flow Rate 1-2.X Open (6->0)
4.050
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568177454
Manufacturer
Festo
