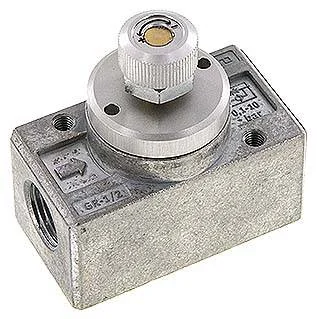

Festo - GR-1/2-3720 - Throttle Check Valve

SKU: festo-gr-1-2-3720

Festo - GR-1/2-3720 - Throttle Check Valve

€200.01€170.95 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€200.01

Brand
Festo
Nut Material
Zinc-plated steel
Material Note
RoHs compliant
Fastening Type
With throughway bores
Valve Function
Throttle blowback function
Setting Element
knurled screw
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
female thread G1/2
Pneumatic Connection 2
female thread G1/2
Medium Temperature (°C)
-20 to 75
Operating Pressure (bar)
0,01 to 1
Ambient Temperature (°C)
-20 to 75
Regulation Screw Material
Brass
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
1620
Normal Nominal Flow In Check Valve Direction
2760
EAN
4052568000509
Manufacturer
Festo
