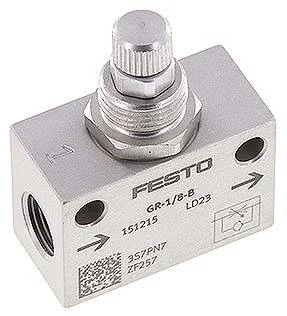

Festo - GR-1/8-B-151215 - Throttle Check Valve

SKU: festo-gr-1-8-b-151215

Festo - GR-1/8-B-151215 - Throttle Check Valve

€77.11€65.91 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€77.11

Brand
Festo
Nut Material
Aluminium wrought alloy
Material Note
RoHs compliant
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
Throttle blowback function
Setting Element
knurled screw
Sleeve Material
POM
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-20 to 60
Operating Pressure (bar)
0.5 to 10
Ambient Temperature (°C)
-20 to 60
Regulation Screw Material
High-alloyed steel
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
210
Normal Nominal Flow In Check Valve Direction
180 to 275
EAN
4052568010690
Manufacturer
Festo
