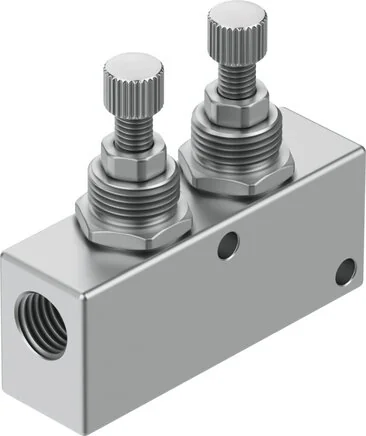

Festo - GR-1/8X2-B-152612 - Throttle Check Valve

SKU: festo-gr-1-8x2-b-152612

Festo - GR-1/8X2-B-152612 - Throttle Check Valve

€107.83€92.16 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€107.83

Brand
Festo
Nut Material
Aluminium wrought alloy
Material Note
RoHs compliant
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
Throttle blowback function
Setting Element
knurled screw
Sleeve Material
POM
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-20 to 60
Operating Pressure (bar)
0.5 to 10
Ambient Temperature (°C)
-20 to 60
Regulation Screw Material
High-alloyed steel
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
205
Normal Nominal Flow In Check Valve Direction
190
EAN
4052568070229
Manufacturer
Festo
