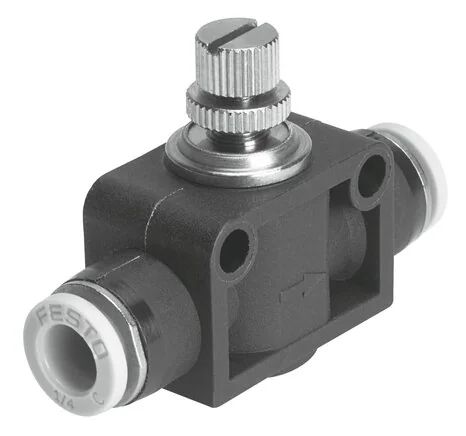

Festo - GR-QB-3/8-U-534684 - Throttle Check Valve

SKU: festo-gr-qb-3-8-u-534684

Festo - GR-QB-3/8-U-534684 - Throttle Check Valve

€34.01€29.07 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€34.01

Brand
Festo
Material Note
RoHs compliant
Stud Material
nickel-plated
Actuation Type
Manually
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
Throttle blowback function
Setting Element
slotted screw
Sleeve Material
POM
Housing Material
PBT reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
Knurled Head Material
nickel-plated
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
QB-3/8
Pneumatic Connection 2
QB-3/8
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
-0,951 to 7,998
Ambient Temperature (°C)
0 to 60
Regulation Screw Material
nickel-plated
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
1449,15
Normal Nominal Flow In Check Valve Direction
1029,661 to 1487,288
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
2605,932 to 2771,186
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
2415,3
EAN
4052568342234
Manufacturer
Festo
