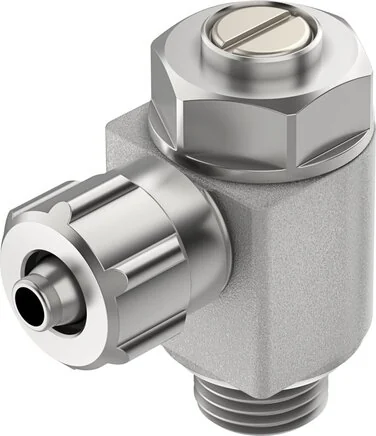

Festo - GRLA-1/8-PK-4-B-151167 - Throttle Check Valve

SKU: festo-grla-1-8-pk-4-b-151167

Browse all parts
Festo - GRLA-1/8-PK-4-B-151167 - Throttle Check Valve

€34.99€29.91 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€34.99

Brand
Festo
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
slotted screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
PK-4 with union nut
Pneumatic Connection 2
G1/8
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Max. Tightening Torque (Nm)
6
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
230
Normal Nominal Flow In Check Valve Direction
190 to 240
Operating Pressure Complete Temperature Range (bar)
0.3 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
295 to 375
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
360
EAN
4052568030568
Manufacturer
Festo
