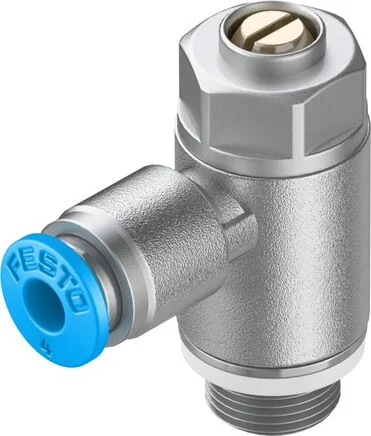

Festo - GRLA-1/8-QS-4-D-193143 - Throttle Check Valve

SKU: festo-grla-1-8-qs-4-d-193143

Browse all parts
Festo - GRLA-1/8-QS-4-D-193143 - Throttle Check Valve

€25.86€22.10 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€25.86

Brand
Festo
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
slotted screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
G1/8
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
chromatiert
Nominal Tightening Torque (Nm)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Normal Nominal Flow In One-way Flow Control
160
Normal Nominal Flow In Check Valve Direction
120 to 190
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
270 to 300
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
250
EAN
4052568043834
Manufacturer
Festo
