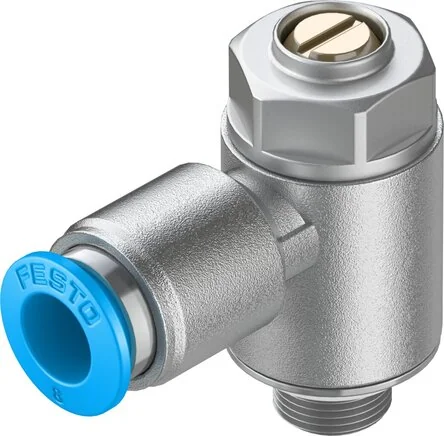

Festo - GRLA-1/8-QS-8-MF-D-537076 - Throttle Check Valve

SKU: festo-grla-1-8-qs-8-mf-d-537076

Browse all parts
Festo - GRLA-1/8-QS-8-MF-D-537076 - Throttle Check Valve

€28.44€24.31 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€28.44

Brand
Festo
Material Note
RoHs compliant
Fastening Type
with male thread
Seals Material
NBR
Valve Function
Throttle blowback function
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
eloxiert
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
G1/8
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
40
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Nominal Tightening Torque (Nm)
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Normal Nominal Flow In One-way Flow Control
475
Normal Nominal Flow In Check Valve Direction
325 to 500
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
610 to 760
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
720
EAN
4052568049164
Manufacturer
Festo
