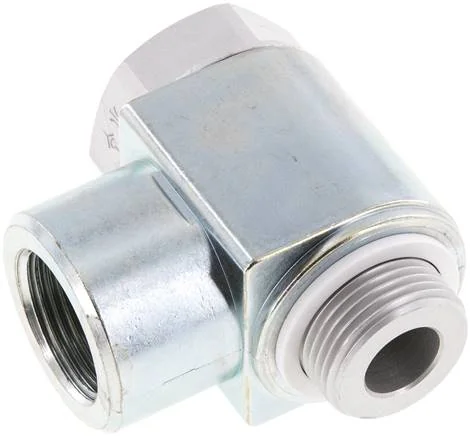

Festo - GRLA-3/4-B-151180 - Throttle Check Valve

SKU: festo-grla-3-4-b-151180

Browse all parts
Festo - GRLA-3/4-B-151180 - Throttle Check Valve

€132.80€113.50 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€132.80

Brand
Festo
Nut Material
Aluminium wrought alloy
Material Note
RoHs compliant
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
slotted screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Max. Tightening Torque (Nm)
60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
4320
Normal Nominal Flow In Check Valve Direction
3220 to 4320
Operating Pressure Complete Temperature Range (bar)
0.3 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
5440 to 7300
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
7300
EAN
4052568010607
Manufacturer
Festo
