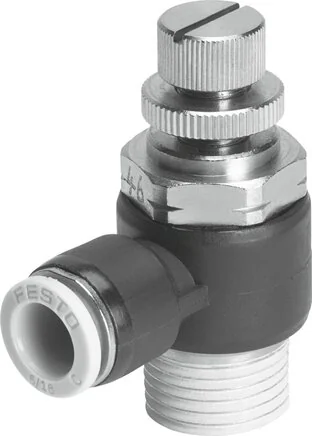

Festo - GRLA-3/8-QB-5/16-U-534665 - Throttle Check Valve

SKU: festo-grla-3-8-qb-5-16-u-534665

Browse all parts
Festo - GRLA-3/8-QB-5/16-U-534665 - Throttle Check Valve

€39.64€33.88 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.64

Brand
Festo
Material Note
RoHs compliant
Stud Material
nickel-plated
Actuation Type
Manually
Fastening Type
with male thread
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
slotted screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
nickel-plated
Installation Position
arbitrary
Knurled Head Material
nickel-plated
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
QB-5/16
Pneumatic Connection 2
3/8 NPT
Medium Temperature (°C)
0 to 60
Ambient Temperature (°C)
0 to 60
Regulation Screw Material
nickel-plated
Swivel Connection Material
PBT reinforced
Max. Tightening Torque (Nm)
21,964
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
3572,03
Normal Nominal Flow In Check Valve Direction
2752,119 to 3648,305
Operating Pressure Complete Temperature Range (bar)
-0,951 to 7,998
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
5529,661 to 5745,763
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
5529,7
EAN
4052568342166
Manufacturer
Festo
