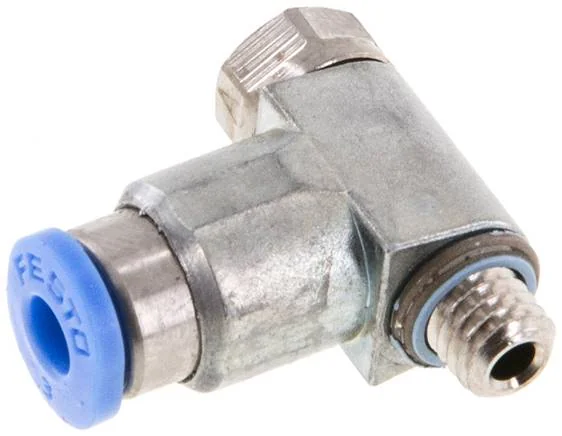

Festo - GRLA-M5-QS-3-LF-C-175053 - Throttle Check Valve

SKU: festo-grla-m5-qs-3-lf-c-175053

Browse all parts
Festo - GRLA-M5-QS-3-LF-C-175053 - Throttle Check Valve

€36.48€31.18 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€36.48

Brand
Festo
Material Note
RoHs compliant
Stud Material
nickel-plated
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
slotted screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-3
Pneumatic Connection 2
M5
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
40
Normal Nominal Flow In Check Valve Direction
46 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
90 to 140
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
80
EAN
4052568037710
Manufacturer
Festo
