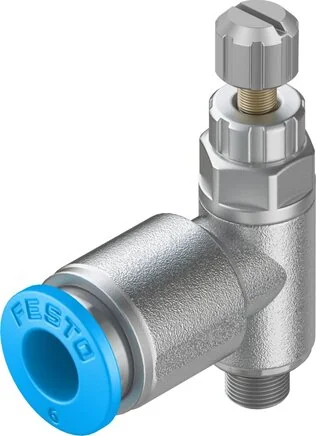

Festo - GRLA-M5-QS-6-RS-D-197578 - Throttle Check Valve

SKU: festo-grla-m5-qs-6-rs-d-197578

Browse all parts
Festo - GRLA-M5-QS-6-RS-D-197578 - Throttle Check Valve

€29.71€25.39 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€29.71

Brand
Festo
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
knurled screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
M5
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
High-alloyed stainless steels
Swivel Connection Material
chromatiert
Nominal Tightening Torque (Nm)
0,8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
115
Normal Nominal Flow In Check Valve Direction
70 to 110
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
145 to 170
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
185
EAN
4052568045333
Manufacturer
Festo
