Festo - GRLSA-1/4-QS-8-540662 - Throttle Check Valve

SKU: festo-grlsa-1-4-qs-8-540662

Browse all parts

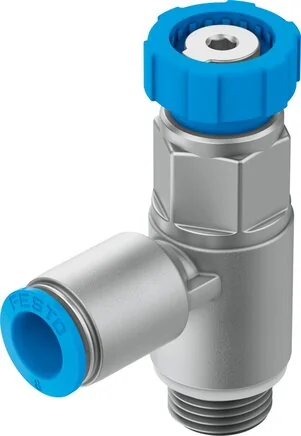

Festo - GRLSA-1/4-QS-8-540662 - Throttle Check Valve

€55.19€47.17 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€55.19

Brand
Festo
Actuation Type
Manually
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
hexagon socket
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
eloxiert
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
40
Regulation Screw Material
PA reinforced
Swivel Connection Material
Zinc pressure cast
Nominal Tightening Torque (Nm)
11
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Normal Nominal Flow In One-way Flow Control
0 to 450
Normal Nominal Flow In Check Valve Direction
390 to 570
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
820 to 930
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
0 to 700
EAN
4052568090494
Manufacturer
Festo
