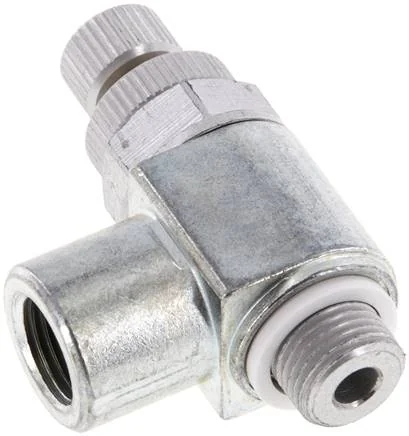

Festo - GRLZ-1/8-RS-B-151192 - Throttle Check Valve

SKU: festo-grlz-1-8-rs-b-151192

Browse all parts
Festo - GRLZ-1/8-RS-B-151192 - Throttle Check Valve

€47.75€40.81 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.75

Brand
Festo
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Supply air throttle check valve function
Setting Element
knurled screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Max. Tightening Torque (Nm)
6
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
340
Normal Nominal Flow In Check Valve Direction
260 to 420
Operating Pressure Complete Temperature Range (bar)
0.3 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
470 to 760
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
615
EAN
4052568069919
Manufacturer
Festo
