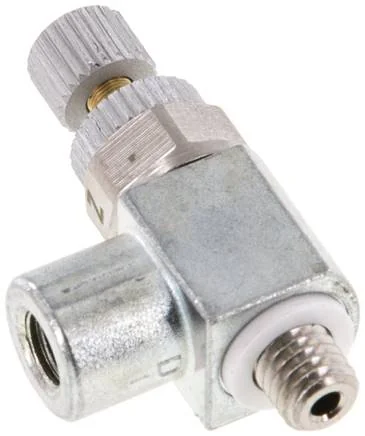

Festo - GRLZ-M5-RS-B-151186 - Throttle Check Valve

SKU: festo-grlz-m5-rs-b-151186

Browse all parts
Festo - GRLZ-M5-RS-B-151186 - Throttle Check Valve

€44.65€38.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€44.65

Brand
Festo
Material Note
RoHs compliant
Stud Material
nickel-plated
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Supply air throttle check valve function
Setting Element
knurled screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
2
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Medium Temperature (°C)
60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
95
Normal Nominal Flow In Check Valve Direction
76 to 95
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
135 to 170
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
169
EAN
4052568069902
Manufacturer
Festo
