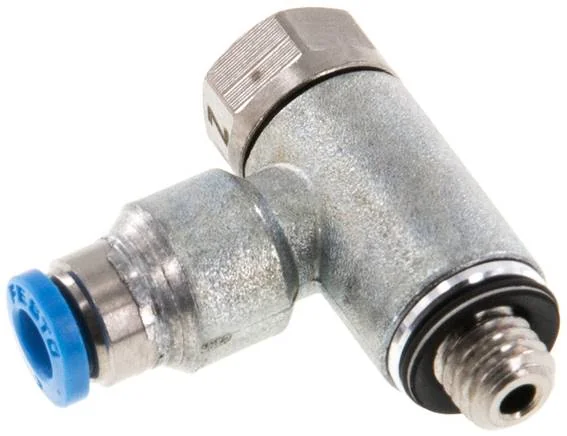

Festo - GRLZ-M5-QS-3-D-193153 - Throttle Check Valve

SKU: festo-grlz-m5-qs-3-d-193153

Browse all parts
Festo - GRLZ-M5-QS-3-D-193153 - Throttle Check Valve

€26.31€22.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€26.31

Brand
Festo
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Supply air throttle check valve function
Setting Element
slotted screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-3
Pneumatic Connection 2
M5
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
chromatiert
Nominal Tightening Torque (Nm)
0,8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Normal Nominal Flow In One-way Flow Control
100
Normal Nominal Flow In Check Valve Direction
60 to 100
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
130 to 160
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
135
EAN
4052568043841
Manufacturer
Festo
