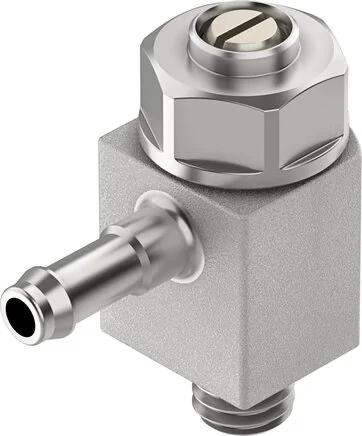

Festo - GRLO-M5-PK-3-B-151182 - Throttle Valve

SKU: festo-grlo-m5-pk-3-b-151182

Browse all parts
Festo - GRLO-M5-PK-3-B-151182 - Throttle Valve

€36.71€31.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€36.71

Brand
Festo
Material Note
RoHs compliant
Stud Material
nickel-plated
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Throttle function
Setting Element
slotted screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
2
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
PK-3
Medium Temperature (°C)
60
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
83
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
140
EAN
4052568030605
Manufacturer
Festo
