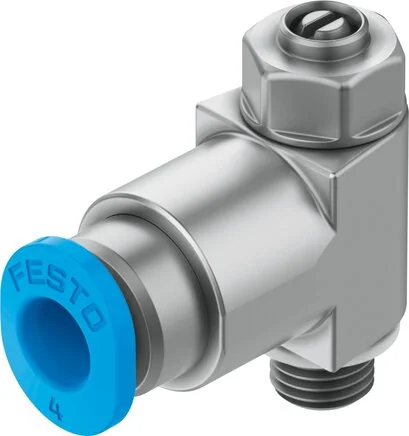

Festo - GRLO-M5-QS-4-LF-C-175057 - Throttle Valve

SKU: festo-grlo-m5-qs-4-lf-c-175057

Browse all parts
Festo - GRLO-M5-QS-4-LF-C-175057 - Throttle Valve

€38.33€32.76 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€38.33

Brand
Festo
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Throttle function
Setting Element
slotted screw
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
QS-4
Medium Temperature (°C)
60
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
-10 to 60
Regulation Screw Material
Brass
Swivel Connection Material
Zinc pressure cast
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
40
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
80
EAN
4052568037758
Manufacturer
Festo
