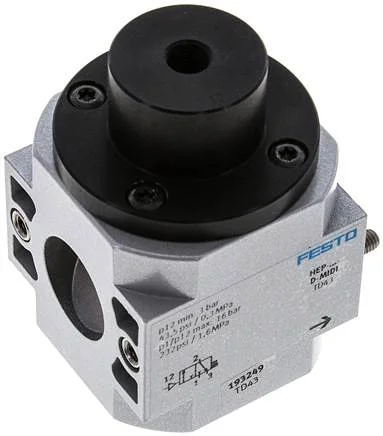

Festo - HEP-D-MIDI-193249 - Switch-On Valve

SKU: festo-hep-d-midi-193249

Browse all parts
Festo - HEP-D-MIDI-193249 - Switch-On Valve

€192.73€164.73 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€192.73

Brand
Festo
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
With Accessories
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Sealing Principle
Soft
Construction Set Up
Piston pusher
Hand Assist Actuation
None
Installation Position
arbitrary
Control Pressure (bar)
3 to 16
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 1.6
Ambient Temperature (°C)
-10 to 60
Control Air 12 Connection
G1/8
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568015121
Manufacturer
Festo
