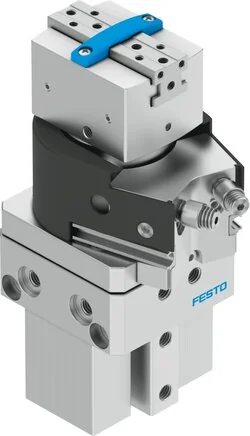

Festo - HGDS-PP-12-P-A-B-1187955 - Swivel Gripper Unit

SKU: festo-hgds-pp-12-p-a-b-1187955

Browse all parts
Festo - HGDS-PP-12-P-A-B-1187955 - Swivel Gripper Unit

€1,820.68€1,556.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,820.68

Brand
Festo
Size
12
Dampening
elastische Dämpfungsringe/-platten beidseitig
Material Note
RoHs compliant
Cover Material
POM
Fastening Type
With Dovetail-slot
Seals Material
NBR
Gripper Function
Parallel
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Angle (°)
210
Construction Set Up
mit Parallelgreifer und Greiferantrieb
Drive Shaft Material
Steel
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed stainless steels
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
3 to 8
Ambient Temperature (°C)
5 to 60
Dampening Rotary Actuator
elastische Dämpfungsringe/-platten beidseitig
Position Detection Grippers
With proximity switch
Repeatability Grippers (mm)
0,01
Stroke Per Gripper Jaw (mm)
2,5
Max. Gripper Jaw Play Sz (mm)
0,02
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Cushioning Adjustment Range (mm)
2
Settings Range Swivel Angle (°)
0 to 210
Position Detection Rotary Actuator
With proximity switch
Max. Working Frequency Gripper (Hz)
4
Fine Adjustment Rotary Actuator (°)
-6,0
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Repeatability Of The Swivel Angle (°)
0,2
Max. Force On Gripper Jaws Fz Static (N)
90
Max. Mass Per External Griper Finger (g)
30
Max. Torque On Gripper Jaws Mx Static (Nm)
6
Max. Torque On Gripper Jaws My Static (Nm)
6
Max. Torque On Gripper Jaws Mz Static (Nm)
6
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,1
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
60
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
40
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
0,85
Max. Mass Per External Gripper Finger, Throttled (g)
100
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
2,0
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
74
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
84
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
37
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
42
EAN
4052568228194
Manufacturer
Festo
