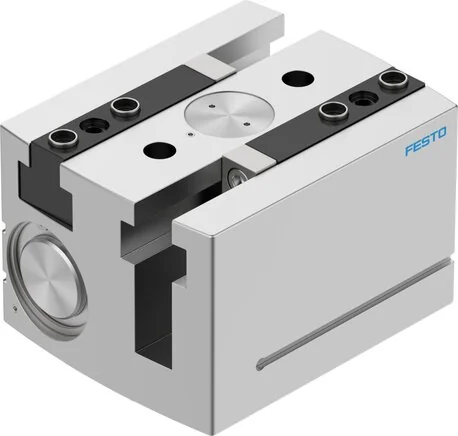

Festo - HGPL-63-60-A-B-3361492 - Parallel Gripper

SKU: festo-hgpl-63-60-a-b-3361492

Browse all parts
Festo - HGPL-63-60-A-B-3361492 - Parallel Gripper

€5,588.05€4,776.11 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5,588.05

Brand
Festo
Size
63
Drive System
pneumatic
Mass Inertia
470,07
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Toothed rack/pinion
Pneumatic Connection
G1/8
Gripper Jaws Material
Stahl, gehärtet
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
3 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,03
Stroke Per Gripper Jaw (mm)
60
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,05
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Lubrication Interval Guide Elements
5
Max. Working Frequency Gripper (Hz)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
9.000
Max. Mass Per External Griper Finger (g)
940
Max. Torque On Gripper Jaws Mx Static (Nm)
300
Max. Torque On Gripper Jaws My Static (Nm)
200
Max. Torque On Gripper Jaws Mz Static (Nm)
250
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,2
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
330
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
410
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
2742
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
2466
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
1371
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
1233
EAN
4052568269296
Manufacturer
Festo
