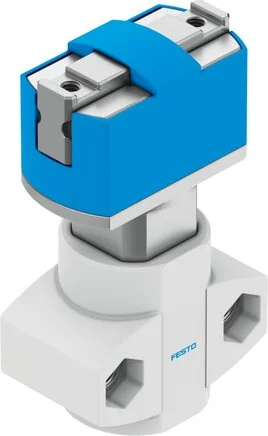

Festo - HGPM-08-EO-G6-197559 - Parallel Gripper

SKU: festo-hgpm-08-eo-g6-197559

Browse all parts
Festo - HGPM-08-EO-G6-197559 - Parallel Gripper

€507.15€433.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€507.15

Brand
Festo
Size
8
Drive System
pneumatic
Mass Inertia
0,00922
Material Note
RoHs compliant
Fastening Type
With throughway bores
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
POM
Position Detection
without
Construction Set Up
Inclined plane
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
open
Operating Pressure (bar)
4 to 8
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,05
Stroke Per Gripper Jaw (mm)
2
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,03
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Spring Force Of Stroke Compensator (N)
4 to 6
Max. Force On Gripper Jaws Fz Static (N)
10
Max. Mass Per External Griper Finger (g)
5
Max. Torque On Gripper Jaws Mx Static (Nm)
0,1
Max. Torque On Gripper Jaws My Static (Nm)
0,1
Max. Torque On Gripper Jaws Mz Static (Nm)
0,1
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,5
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
2,3
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
4,9
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
16
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
8
EAN
4052568160562
Manufacturer
Festo

Be the first to write a review!

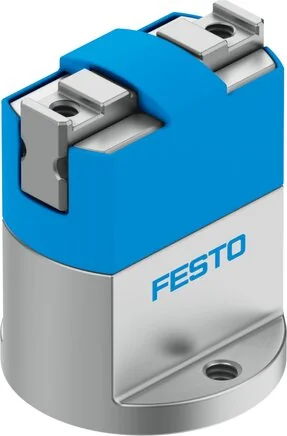

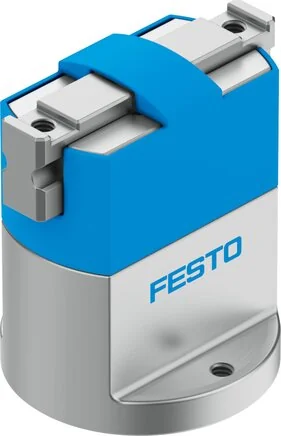

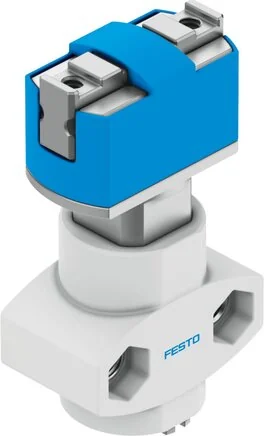

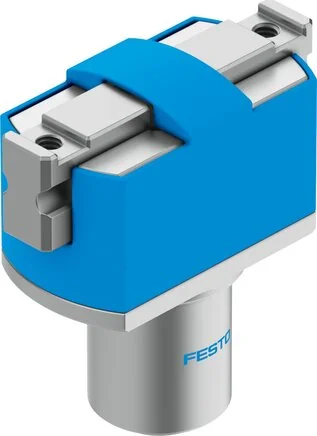

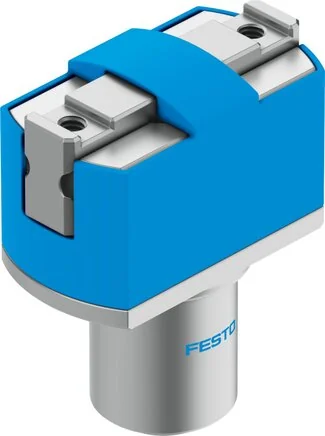

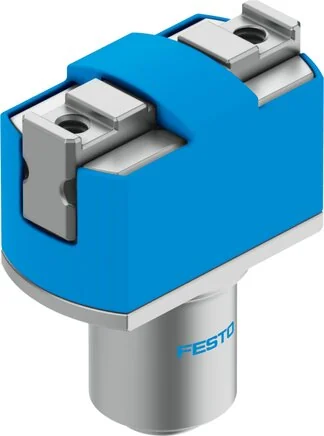

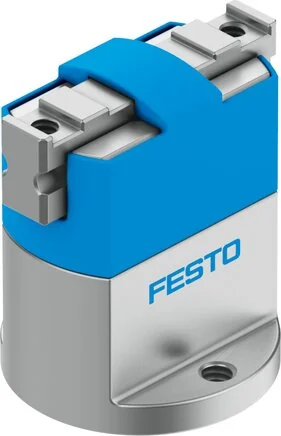

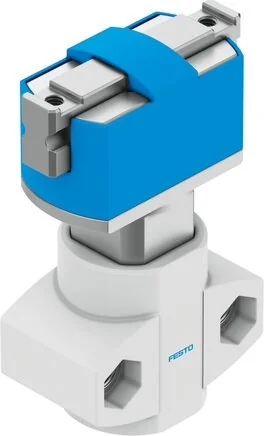

Similar items you might like
