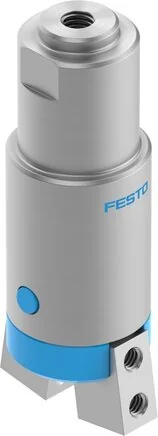

Festo - HGWM-08-EO-G8-185695 - Angular Gripper

SKU: festo-hgwm-08-eo-g8-185695

Browse all parts
Festo - HGWM-08-EO-G8-185695 - Angular Gripper

€238.43€203.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€238.43

Brand
Festo
Size
8
Drive System
pneumatic
Mass Inertia
25,2
Material Note
RoHs compliant
Fastening Type
clamped
Gripper Function
elbow
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Cover Cap Material
POM
Position Detection
without
Construction Set Up
Inclined plane
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
open
Max. Opening Angle (°)
17,0
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
5 to 60
Spring Force Torque (Ncm)
0,005
Repeatability Grippers (mm)
0,02
Max. Gripper Jaw Play Sz (mm)
0,03
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Working Frequency Gripper (Hz)
4
Max. Force On Gripper Jaws Fz Static (N)
7
Max. Mass Per External Griper Finger (g)
400
Max. Torque On Gripper Jaws Mx Static (Ncm)
0,2
Max. Torque On Gripper Jaws My Static (Ncm)
0,2
Max. Torque On Gripper Jaws Mz Static (Ncm)
0,2
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,5
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
1,2
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
2,7
Mass Moment Of Inertia Per External Gripper Finger
250
Total Gripper Torque, Closing, 0.6 MPa (6 bar, 87 psi) (Ncm)
22
EAN
4052568144593
Manufacturer
Festo
