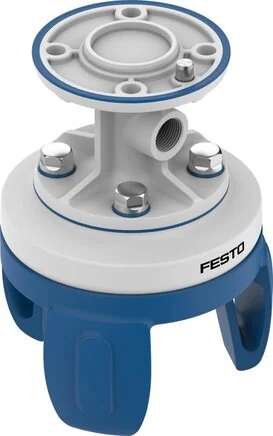

Festo - HPSX-70-3-S-40-BU-RA50-8207889 - Soft Gripper

SKU: festo-hpsx-70-3-s-40-bu-ra50-8207889

Browse all parts
Festo - HPSX-70-3-S-40-BU-RA50-8207889 - Soft Gripper

€865.80€740.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€865.80

Brand
Festo
Size
70
Colour
blue
Cap Material
PA reinforced
Drive System
pneumatic
Material Note
RoHs compliant
Fastening Type
nach ISO 9409-1-50-4-M6
Shore Hardness
A 40 +5
Screws Material
Stainless steel
Adapter Material
PA reinforced
Gripper Function
Adaptiv
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Food Compatibility
See expanded material information
Construction Set Up
reibschlüssig
Protection Category
IP69K
Working Stroke (mm)
20 to 90
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pneumatic Connection
G1/4
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Principle Of Operation
double acting
Material Gripper Finger
VMQ (Silikon), metalldetektierbar
Operating Pressure (MPa)
-0,085 to 0,02
Total Gripping Force (N)
10
Ambient Temperature (°C)
0 to 60
Number Of Gripper Fingers
3
Burst Pressure Of Cap (MPa)
0,06
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Max. Diameter To Be Gripped (mm)
80
Min. Diameter To Be Gripped (mm)
55
Max. Working Frequency Gripper (Hz)
5
EAN
4052568782788
Manufacturer
Festo
