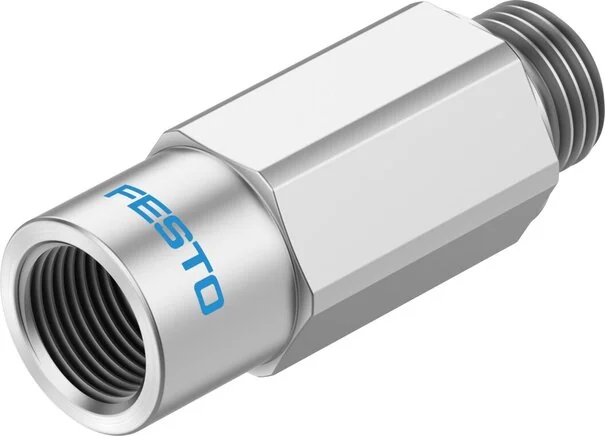

Festo - ISV-1/8-F1A-8217204 - Vacuum Suction Valve

SKU: festo-isv-1-8-f1a-8217204

Browse all parts
Festo - ISV-1/8-F1A-8217204 - Vacuum Suction Valve

€44.96€38.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€44.96

Brand
Festo
Size
G1/8
Fastening Type
Screwable
Float Material
POM
Filter Material
Edelstahlgewebe
Spring Material
High-alloyed steel
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Operating Pressure
-0,095 to 0
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ejection Impulse Plausibility (MPa)
8
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Required Suction Volumetric Flow At -0.05 MPa (-0.5 bar, -7.25 psi)
2,0
EAN
4052568727802
Manufacturer
Festo
