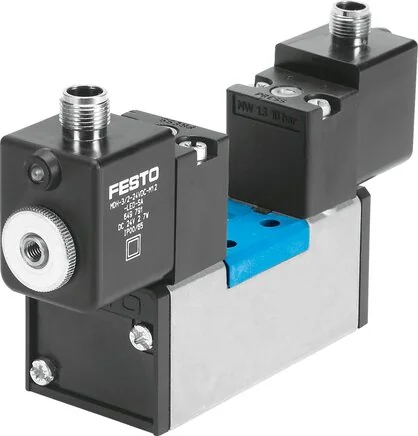

Festo - JMDDH-5/2-D-3-M12-C-539081 - Solenoid Valve

SKU: festo-jmddh-5-2-d-3-m12-c-539081

Browse all parts
Festo - JMDDH-5/2-D-3-M12-C-539081 - Solenoid Valve

€407.99€348.71 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€407.99

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
369
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Throughway bore and screw
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 bi-stable dominated
Build Width (mm)
65
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
14,5
Shifting Time (ms)
23
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
71
Electrical Connection
M12x1
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 3 to ISO 5599-1
Medium Temperature (°C)
-10 to 50
Operating Pressure (bar)
2 to 10
Ambient Temperature (°C)
-10 to 50
Coil Characteristic Value
24 V DC: 2,7 W
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Permitted Voltage Oscillations
± 10 %
Shifting Time (Dominating) (ms)
23
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
3800
Max. Negative Test Impulse For 1 Signal
4900
Standard Nominal Flow Rate (Standardised To DIN 1343)
4500
EAN
4052568259754
Manufacturer
Festo
