Festo - KD3-1/8-A-R-531659 - Coupling Socket

SKU: festo-kd3-1-8-a-r-531659

Browse all parts

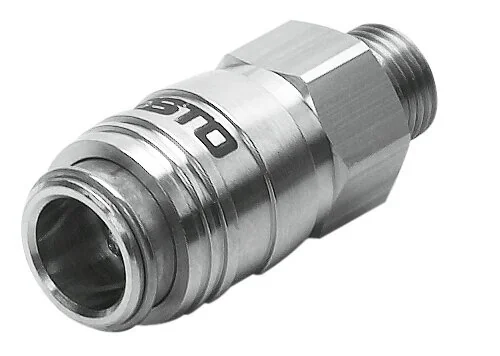

Festo - KD3-1/8-A-R-531659 - Coupling Socket

€28.86€24.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€28.86

Brand
Festo
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Seals Material
NBR
Spring Material
High-alloyed stainless steels
Circlip Material
High-alloyed stainless steels
Housing Material
Brass
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
5
Valve Body Material
Brass
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/8
Thread Sealing Material
PA66-GF30 / TPE-U
Threaded Piece Material
Brass
Ambient Temperature (°C)
-10 to 60
Material Releasing Sleeve
brass, nickel-plated
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
5,00
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 15 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
EAN
4052568047771
Manufacturer
Festo
