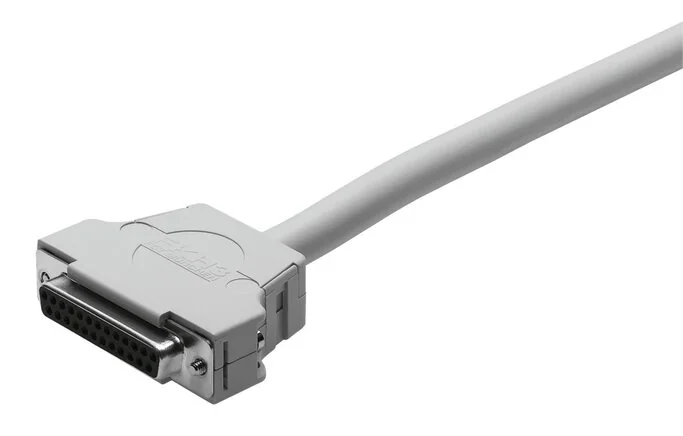

Festo - KMP6-26P-16-10-527548 - Connection Cable

SKU: festo-kmp6-26p-16-10-527548

Browse all parts
Festo - KMP6-26P-16-10-527548 - Connection Cable

€258.86€221.25 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€258.86

Brand
Festo
Wire Ends
Cut dull
Cable Set Up
20 x 0,25 mm²
Material Note
RoHs compliant
Housing Colour
Grey
Line Properties
Standard
Cable Length (m)
10
Housing Material
PBT reinforced
Line Designation
Without sign holder
Cable Diameter (mm)
8,8
Cable Shield Colour
Grey
Protection Category
IP40
Screw Lock Material
brass, nickel-plated
Complies To Standard
DIN 41652
Connection Frequency
50
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
PVC
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
2
Tolerance Cable Diameter
± 0,25 mm
Ambient Temperature (°C)
-25 to 70
Bearing Temperature (°C)
-25 to 75
Surge Voltage Strength (kV)
1
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
Angular
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
2,8
Electrical Connection 1, Fastening Type
2x screw 4-40 UNC
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
132
Electrical Connection 1, Connection Pattern
995735
Electrical Connection 1, Occupied Pin / Wire
20
Electrical Connection 2, Occupied Pin / Wire
20
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
88
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Sub-D
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
26
Electrical Connection 2, Number Of Pins / Wires
20
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568162733
Manufacturer
Festo
