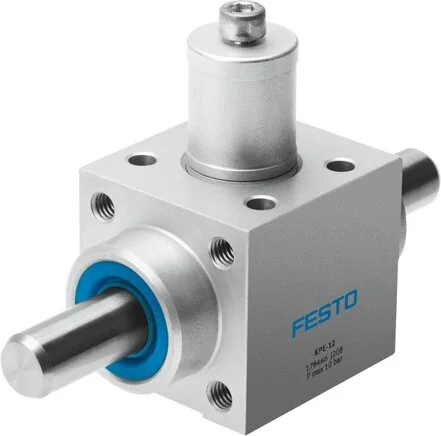

Festo - KPE-12-178466 - Locking Unit

SKU: festo-kpe-12-178466

Browse all parts
Festo - KPE-12-178466 - Locking Unit

€698.98€597.42 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€698.98

Brand
Festo
Variants
One-sided piston rod
Material Note
RoHs compliant
Seals Material
TPE-U(PU)
Piston Material
POM
Safety Function
Halten und Anhalten einer Bewegung
Spring Material
spring steel
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
without
Clamp Jaws Material
Brass
Construction Set Up
Tilting plates
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Release Pressure (MPa)
0,3
Operating Pressure (MPa)
0,3 to 1
Static Holding Force (N)
600
Ambient Temperature (°C)
-10 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Round Stock To Be Clamped (mm)
12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Terminal Type With Effective Direction
Klemmung durch Feder, lösen durch Druckluft
EAN
4052568014353
Manufacturer
Festo
