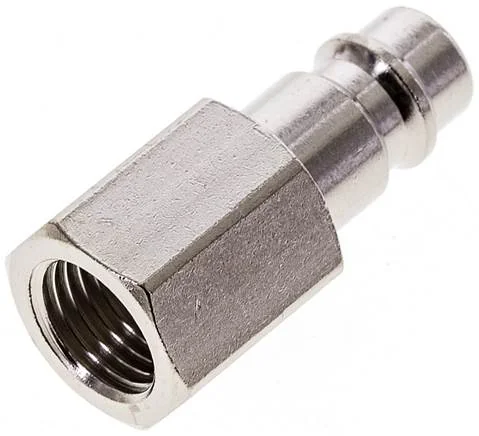

Festo - KS4-1/4-I-531678 - Coupling Plug

SKU: festo-ks4-1-4-i-531678

Browse all parts
Festo - KS4-1/4-I-531678 - Coupling Plug

€8.41€7.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.41

Brand
Festo
Material Note
RoHs compliant
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
7,85
Material Information
brass, nickel-plated
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
female thread G1/4
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
9,50
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 15 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
780,5 to 1258,5
Standard Nominal Flow Rate (Standardised To DIN 1343)
720 to 1161
EAN
4052568047894
Manufacturer
Festo
