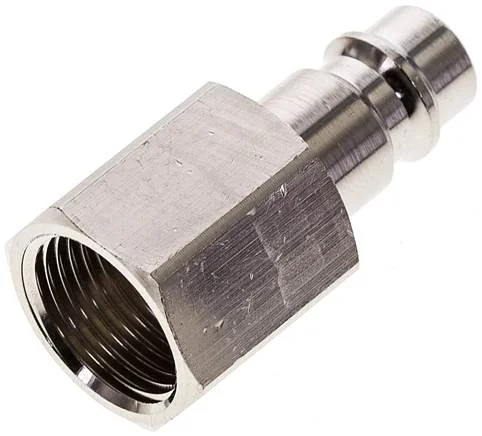

Festo - KS4-3/8-I-531679 - Coupling Plug

SKU: festo-ks4-3-8-i-531679

Browse all parts
Festo - KS4-3/8-I-531679 - Coupling Plug

€8.41€7.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.41

Brand
Festo
Material Note
RoHs compliant
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
7,85
Material Information
brass, nickel-plated
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
female thread G3/8
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
21,50
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 15 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
819,5 to 1463,4
Standard Nominal Flow Rate (Standardised To DIN 1343)
756 to 1350
EAN
4052568047900
Manufacturer
Festo
