Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18
Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18
Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18
Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18
Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18
Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18

Voss - RSWS12LM18 - Angle Swivel Fitting 12L M18

€9.47

(Excl. VAT)

Price

(Excl. VAT)

€9.47

Product Description

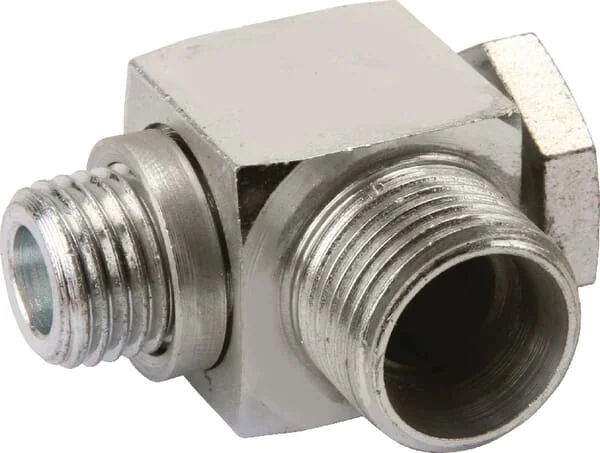

The VOSS RSWS12LM18 is a genuine VOSS 90-degree angle swivel fitting, engineered for robust hydraulic applications. This adjustable swivel fitting is designed for 12L light series tubes and features an M18x1.5 thread, providing a secure and flexible connection in hydraulic systems. Constructed from durable steel with a zinc-nickel coating, it offers excellent corrosion resistance and reliability, ensuring optimal performance and longevity in demanding industrial environments.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
12 mm
Seal material
Metal
Inside diameter
8 mm10 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Long description
Application range: Hydraulic hose Hydraulic pipes Properties: Multiple corrosion resistance Adjustable direction Determine selected direction using self locking nut Technical informatio
Surface treatment
Zinc Nickel
Connection 2, type
Cutting ring
Connection 2, length
36 mm
Connection no 1 type
Banjo
Max working pressure
315 BAR
Connection 2, diameter
12 mm
Max. tightening torque
100 N·m
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
S1Connection no 1 hex size
23 mm
Connection no 1 thread type
Metric
S3Connection 2, wrench size
24.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
S2Connection no 1 wrench size
14.0 mm
Connection no 1 thread diameter
18 mm
L1Connection no 1 thread length
12 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L2Connection 2, centre to end distance
18,5 mm
L1Connection no 1 center to end distance
27 mm
Manufacturer
Voss
