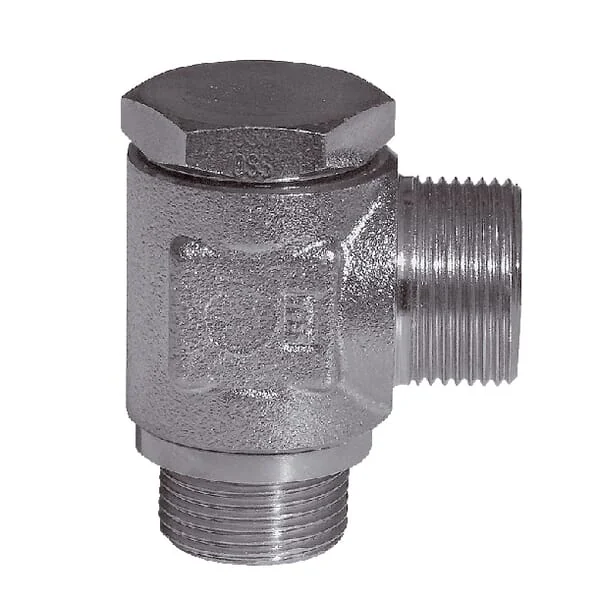

VOSS - RSWS18LR12WD - Swivel Coupling 18L R1/2

OEM Quality

SKU: voss-rsws18lr12wd

VOSS - RSWS18LR12WD - Swivel Coupling 18L R1/2

€19.93€17.03 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€19.93

Brand
Voss
Part Numbers
rsws18lr12wd
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
18 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
11 mm15 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection 2, length
43 mm
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Max. tightening torque
110 N·m
Connection no 1 diameter
18 mm
Connection no 1 hex size
26,9 mm
Connection 2, thread type
BSP
Connection 2, wrench size
30.0 mm
Connection no 1 thread type
BSP
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/2 Inch
S3Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
14
Connection no 1 thread diameter
M26
L1Connection no 1 thread length
12 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
21,5 mm
Connection no 1 center to end distance
36,5 mm
Manufacturer
Voss

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
