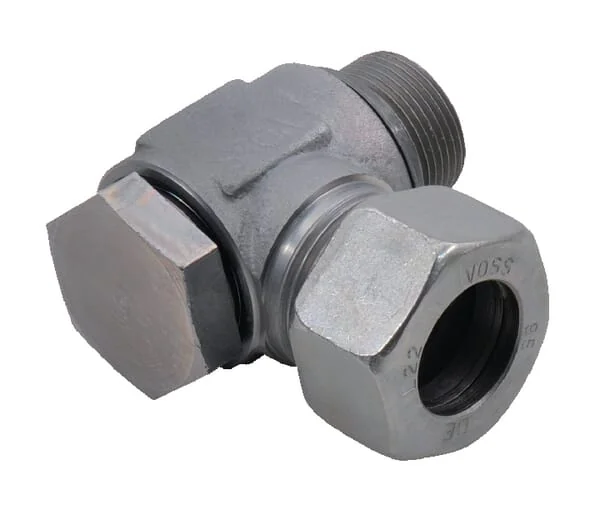

VOSS - RSWV10SM16WD - Angle Swivel Fitting 10S M

OEM Quality

SKU: voss-rswv10sm16wd

VOSS - RSWV10SM16WD - Angle Swivel Fitting 10S M

€14.36€12.27 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.36

Brand
Voss
Part Numbers
rswv10sm16wd
Pros
2S cutting ring
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
LL L S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
10 mm
Seal material
Metal Synthetic elastomer
Product details
2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut - Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Connection no 1 diameter
10 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M16
S3Connection no 1 wrench size
22.0 mm
Connection no 1 thread diameter
M18
L1Connection no 1 thread length
12 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
18,5 mm
Connection no 1 center to end distance
35 mm
Manufacturer
Voss

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut - Hydraulic hose Hydraulic pipes
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
