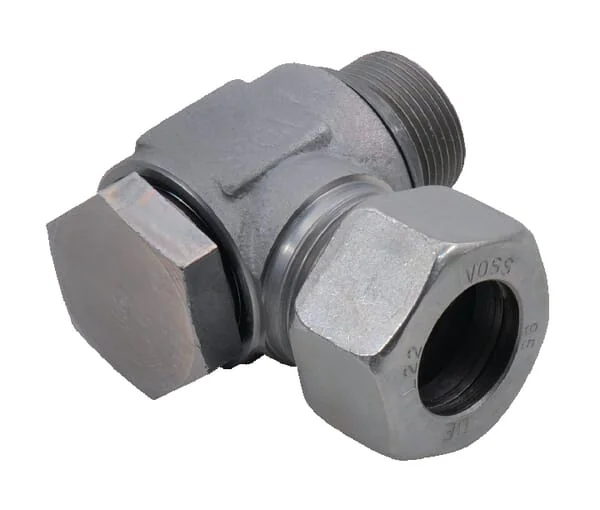

Voss - RSWV12LM18WD - Coupling 18 LM 18 WD
Voss - RSWV12LM18WD - Coupling 18 LM 18 WD
Voss - RSWV12LM18WD - Coupling 18 LM 18 WD
Voss - RSWV12LM18WD - Coupling 18 LM 18 WD

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - RSWV12LM18WD - Coupling 18 LM 18 WD

Voss - RSWV12LM18WD - Coupling 18 LM 18 WD

€11.00

(Excl. VAT)

Price

(Excl. VAT)

€11.00

Product Description

The VOSS RSWV12LM18WD is a genuine VOSS Fluid straight fitting designed for robust hydraulic connections. This high-quality fitting features a 12mm outer diameter tube connection for light series applications and an M18x1.5 weld cone for secure integration into hydraulic systems. Constructed from durable zinc-nickel plated steel, it ensures reliable and leak-free performance in demanding industrial and agricultural environments, with an overall length of 45mm and a weight of 0.100 kg.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
2S cutting ring
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
LL L S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
12 mm
Seal material
Metal Synthetic elastomer
Product details
2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut - Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
315 BAR
Connection no 1 diameter
12 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
S3Connection no 1 wrench size
24.0 mm
Connection no 1 thread diameter
M18
L1Connection no 1 thread length
12 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
20 mm
Connection no 1 center to end distance
35 mm
Manufacturer
Voss
