Voss - RSWV12LR38 - Coupling
Voss - RSWV12LR38 - Coupling
Voss - RSWV12LR38 - Coupling
Voss - RSWV12LR38 - Coupling

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Voss - RSWV12LR38 - Coupling

Voss - RSWV12LR38 - Coupling

€9.83

(Excl. VAT)

Price

(Excl. VAT)

€9.83

Product Description

The VOSS RSWV12LR38 is a genuine VOSS L-Series coupling designed for hydraulic applications. This robust fitting features a 12L tube connection and an R3/8 thread, ensuring a secure and leak-free connection. It is engineered with a 24° cone for optimal sealing performance in high-pressure hydraulic systems. Manufactured from steel, it provides durability and reliability in demanding industrial and agricultural environments.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
L3Length
38,5 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
12 mm
Seal material
Metal
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Long description
Application range: Hydraulic hose Hydraulic pipes Details: 2S cutting ring Properties: Optimised cutting ring connection and functionality Multiple corrosion resistance Adjustable
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Connection no 1 diameter
12 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
S1Connection 2, wrench size
24.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
3/8 Inch
S3Connection no 1 wrench size
22.0 mm
Connection 2, threads per inch
19
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
33 mm
L2Connection centre to insert distance
16 mm
Manufacturer
Voss

Similar items you might like

  • Voss

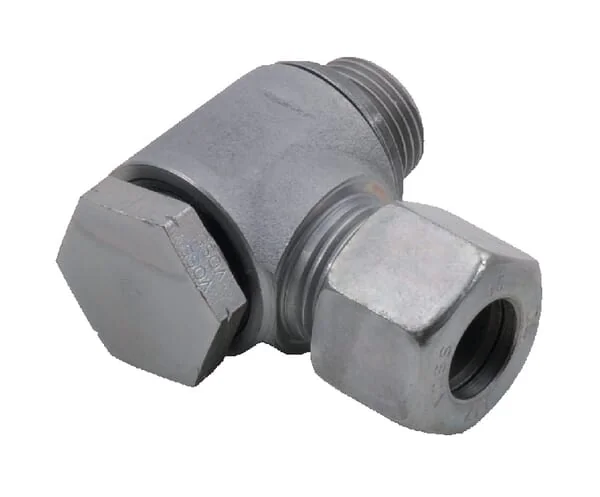

    Voss - RSWV12LR14WD - Swivel Coupling 12L R1/4

    Voss

    €10.83

  • Voss

    Voss - RSWV12SR38 - Banjo Coupling

    Voss

    €9.90

  • Voss

    Voss - RSWV12SR38WD - Banjo Coupling 12S x3/8bu.dr

    Voss

    €11.07

  • Voss

    Voss - RSWV14SR12WD - Swivel Coupling 14S R1/2

    Voss

    €14.27

  • Voss

    Voss - RSWV15L12 - Angle Swivel Fitting 15L R1/2

    Voss

    €14.16

  • Voss

    Voss - RSWV15LM22 - Swivel Coupling 15L M22

    Voss

    €21.15

  • Voss

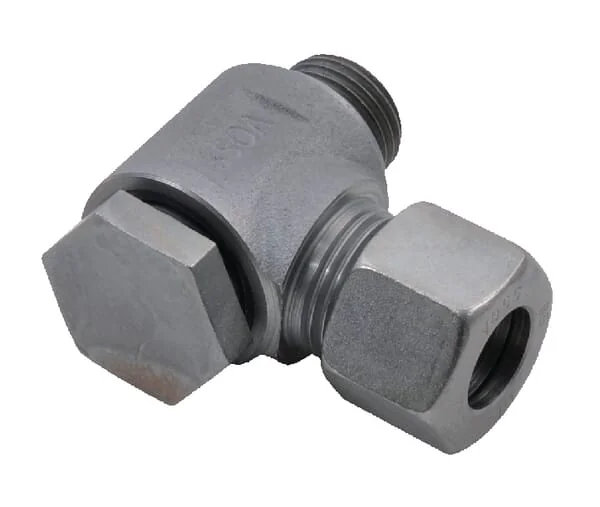

    Voss - RSWV16SM22 - Banjo Coupling

    Voss

    €14.67

  • Voss

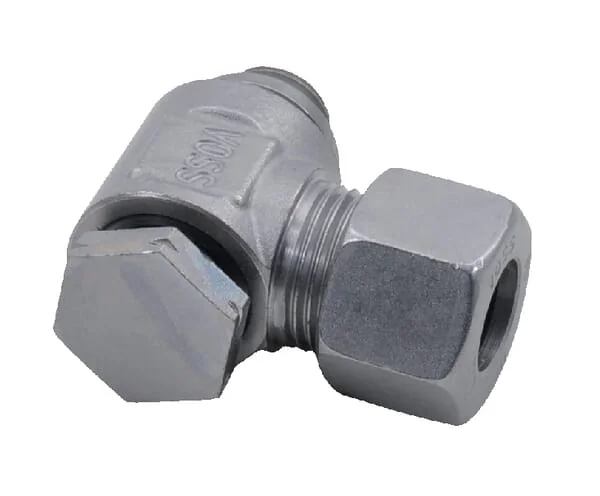

    Voss - RSWV15LR12 - Coupling
