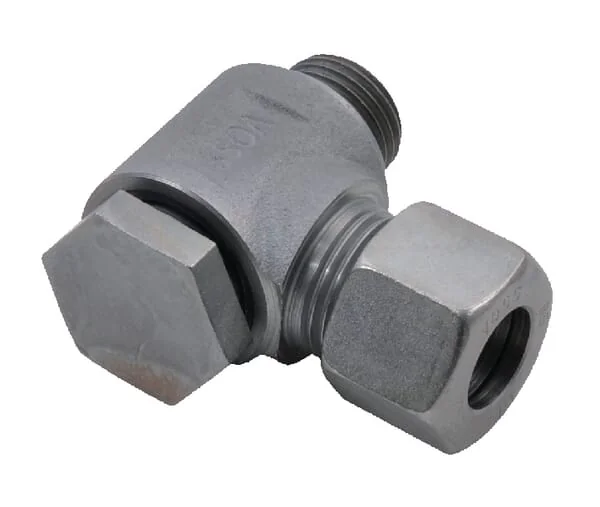

Voss - RSWV15LM22 - Swivel Coupling 15L M22
Voss - RSWV15LM22 - Swivel Coupling 15L M22
Voss - RSWV15LM22 - Swivel Coupling 15L M22
Voss - RSWV15LM22 - Swivel Coupling 15L M22

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - RSWV15LM22 - Swivel Coupling 15L M22

Voss - RSWV15LM22 - Swivel Coupling 15L M22

€21.01

(Excl. VAT)

Price

(Excl. VAT)

€21.01

Product Description

The VOSS RSWV15LM22 is a genuine VOSS swivel coupling designed for hydraulic applications. This light series (15L) coupling features an M22x1.5 thread and an O-ring seal, ensuring reliable and leak-free connections. Manufactured from robust steel with a durable zinc-nickel plating (VOSS coat), it offers excellent corrosion resistance and can withstand operating pressures up to 315 bar. Conforming to DIN 2353 / ISO 8434-1 standards, it provides flexibility in hydraulic lines, preventing hose twisting and reducing stress on connections.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
15L

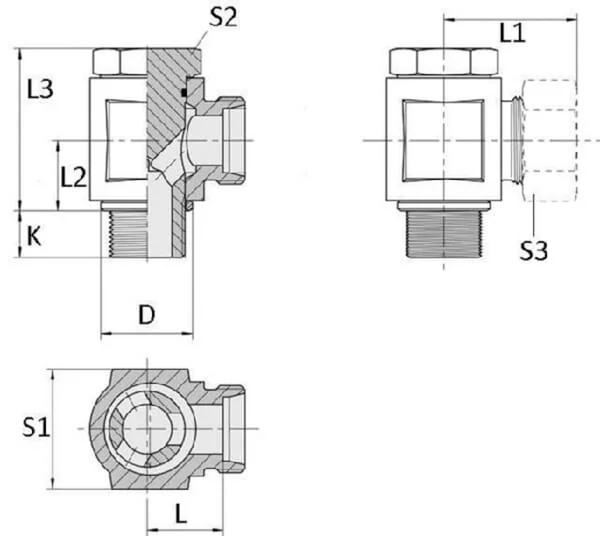

L3Length
47,5 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
15 mm
Seal material
Metal
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Adjustable direction
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Connection no 1 diameter
15 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
S3Connection 2, wrench size
27.0 mm
Connection no 1 thread pitch
1.50 mm
DConnection no 1 wrench size
27.0 mm
Connection 2, thread diameter
M22
KConnection no 1 thread length
14 mm
Connection no 1 thread diameter
M22
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection centre to insert distance
21,5 mm
L2Connection 2, centre to end distance
37 mm
Manufacturer
Voss
