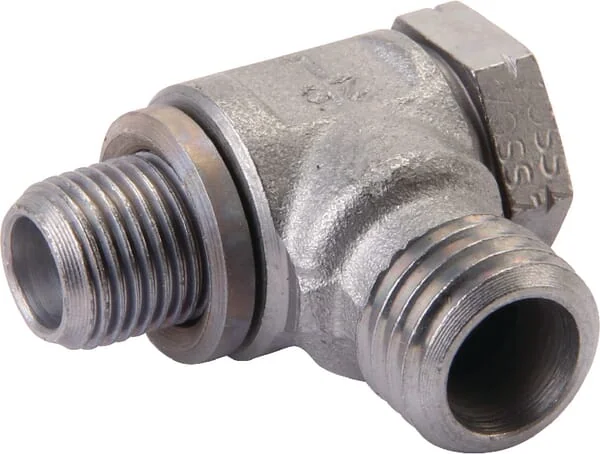

VOSS - RSWS16SR12 - Swivel Fitting 16S-1/2BSP

OEM Quality

SKU: voss-rsws16sr12

VOSS - RSWS16SR12 - Swivel Fitting 16S-1/2BSP

€14.51

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€14.51

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
rsws16sr12
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
16 mm
Seal material
Metal
Inside diameter
11 mm12 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Surface treatment
Zinc Nickel
Connection 2, type
Cutting ring
Connection 2, length
43 mm
Connection no 1 type
Banjo
Max working pressure
400 BAR
Connection 2, diameter
16 mm
Max. tightening torque
160 N·m
Connection no 1 hex size
26 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
BSP
S1Connection 2, wrench size
30.0 mm
Connection 2, thread diameter
M24
S3Connection no 1 wrench size
27.0 mm
KConnection no 1 thread length
14 mm
Connection no 1 thread diameter
1/2 Inch
Connection 2, type - male/female
Male
Connection no 1 threads per inch
14
Connection no 1 type - male/female
Male
Connection no 1 center to end distance
41 mm
L1Connection 2, centre to end distance
21,5 mm
Manufacturer
Voss
